The “full-sized” base plate compass for experienced navigators – used by NATO Forces around the world.
Mainly used by the infantry as a soldier’s or officer’s compass.
Additional features include measuring scales for positioning (GPS), graduated in mils and degrees (6400/360), magnifying glass and rubber feet for precision map work. Luminous compound that need to be activated by daylight/flashlight etc. Will give light up to 4 hours.
Features:
Weight - 36 g

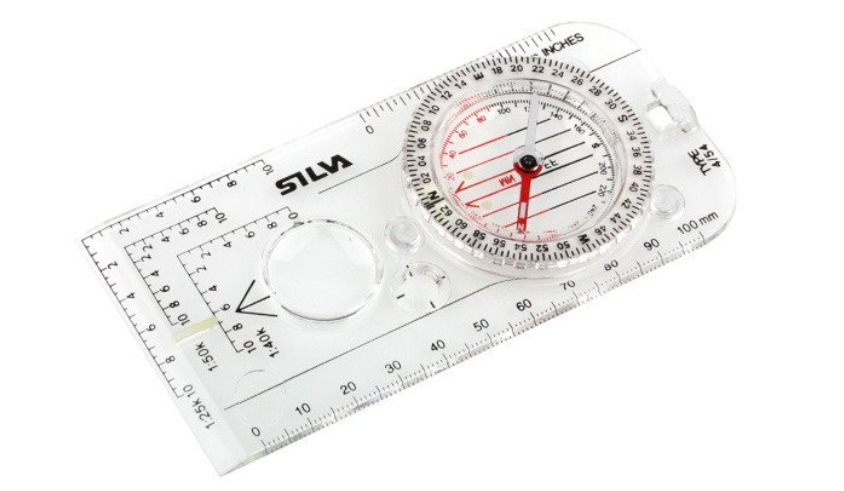

Silva Expedition 4 Militare Compass 35692-1511
Mainly used by the infantry as a soldier’s or officer’s compass.
Additional features include measuring scales for positioning (GPS), graduated in mils and degrees (6400/360), magnifying glass and rubber feet for precision map work. Luminous compound that need to be activated by daylight/flashlight etc. Will give light up to 4 hours.
Features:
- Full size base plate
- Non-slip silicon feet on base plate
- Romer scales: 1:25.000, 1:40.000, 1:50.000
- Inch scale
- Millimetre ruler
- Luminous markings for night navigation magnifier
- 360° scale at the bottom of the compass capsule
- Rotary disc with 6400 mils scale
- Precision ± 1° (17.8 mils)
- Magnifying glass for map reading
- Settling time from 90 degree angle within +/- 3 deg: 2.7 sec
- Settling time from 90 degree angle to complete rest: 5 sec
- Accuracy: +/- 1 degree (17.8 mils)
- Waterproof: IP68 - (more than 100 m)
- Altitude use: 5000m @ -15 C
- Impact resistance: 30g in XYZ directions and free fall from 1,5 m height into gravel
- Temperature operating range: -40 to +60 C
Weight - 36 g
Silva Expedition 4 Militare Compass 35692-1511
